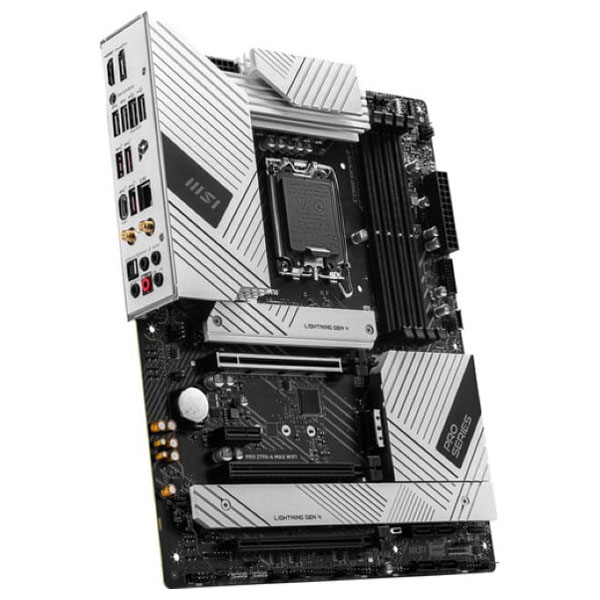

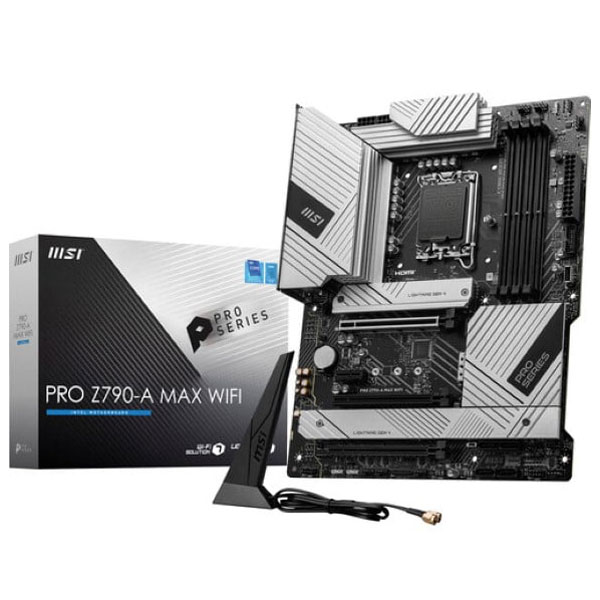

MSI PRO Z790-A MAX WIFI LGA 1700 ATX Motherboard

Name: MSI PRO Z790-A MAX WIFI LGA 1700 ATX Motherboard
SKU: 1599
Availability: InStock

Original price was: ₨ 88,000.Current price is: ₨ 86,000.

Category: Motherboards

Description

MSI PRO Z790-A MAX WIFI LGA 1700 ATX Motherboard Price in Pakistan

Best Seller Ranking	#16 in Intel Motherboards

Model
Brand	MSI
Model	PRO Z790-A MAX WIFI

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Chipsets
Chipset	Intel Z790

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: – 1DPC 1R Max speed up to 7800+ MHz – 1DPC 2R Max speed up to 6600+ MHz – 2DPC 1R Max speed up to 6400+ MHz – 2DPC 2R Max speed up to 5600+ MHz
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Feature	Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory

Expansion Slots
PCI Express 5.0 x16	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI Express 4.0 x16	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express 3.0 x16	PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI Express x1	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
SATA RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Onboard Audio
Audio Chipset	Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel 2.5Gbps LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Bluetooth	Yes

Rear Panel Ports

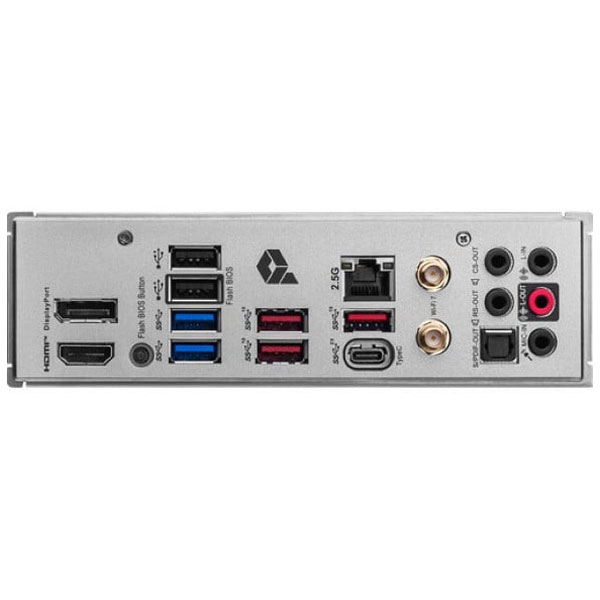

Back I/O Ports	1 x DisplayPort 2 x USB 2.0 1 x 2.5G LAN 2 x Wi-Fi / Bluetooth Antenna Bracket 5 x Audio Connectors 1 x HDMI 1 x Flash BIOS Button 2 x USB 3.2 Gen 1 5Gbps (Type-A) 3 x USB 3.2 Gen 2 10Gbps (Type-A) 1 x USB 3.2 Gen 2×2 20Gbps (Type-C) 1 x S/PDIF-OUT

Internal I/O Connectors
Onboard USB	4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
Other Connectors	1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0)
